GE LOGIQ E9 Ultrasound System
GE HealthCare’s LOGIQ E9 is a general imaging ultrasound system on a mobile console, with cardiac, vascular, obstetric, abdominal and musculoskeletal applications. Ultravision can advise on GE’s later LOGIQ E10 platform and can still service installed LOGIQ E9 systems.
- Abdominal and renal
- Gynaecology and pelvic
- Fetal and obstetric
- Cardiac
- Peripheral vascular
- Musculoskeletal
Overview

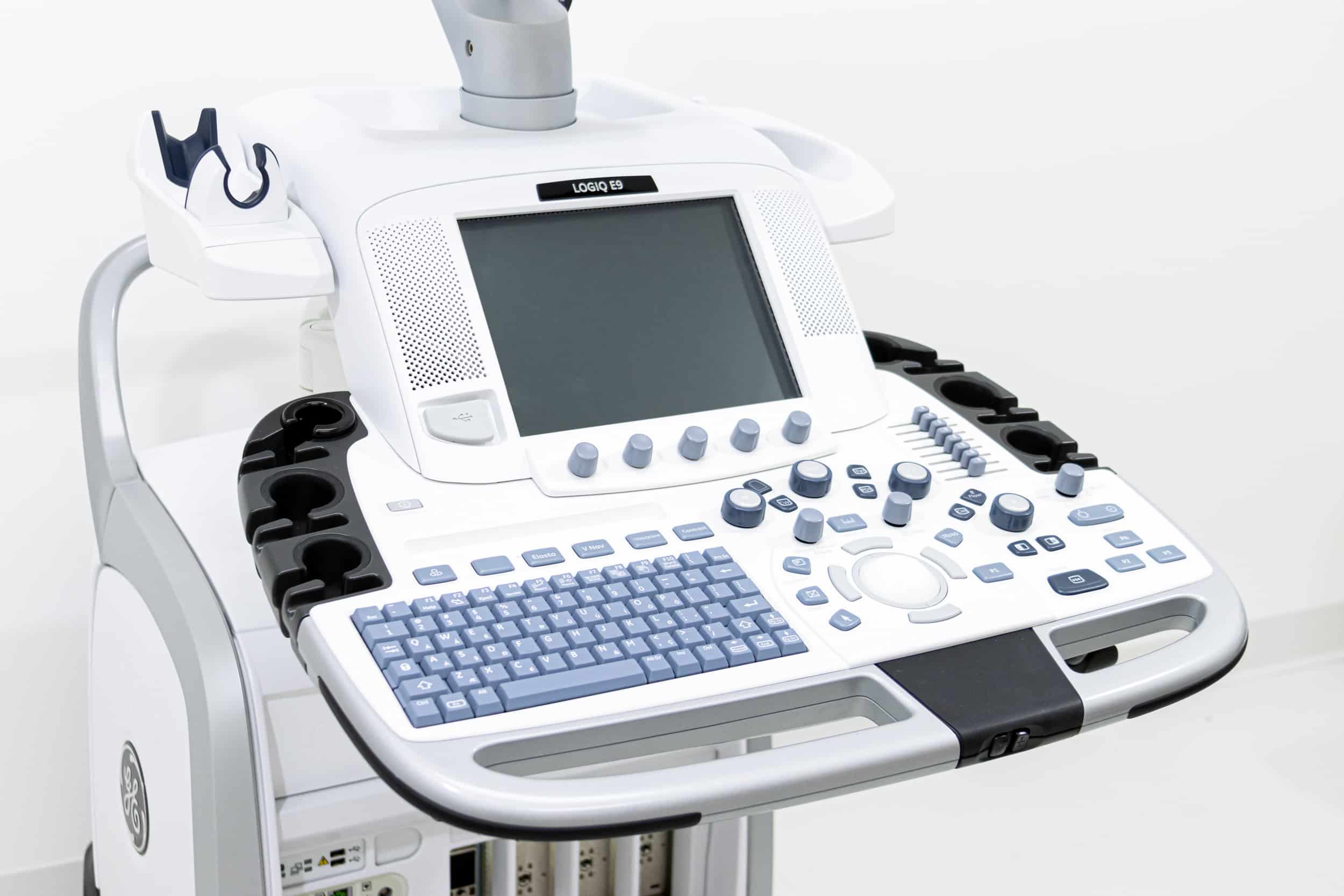

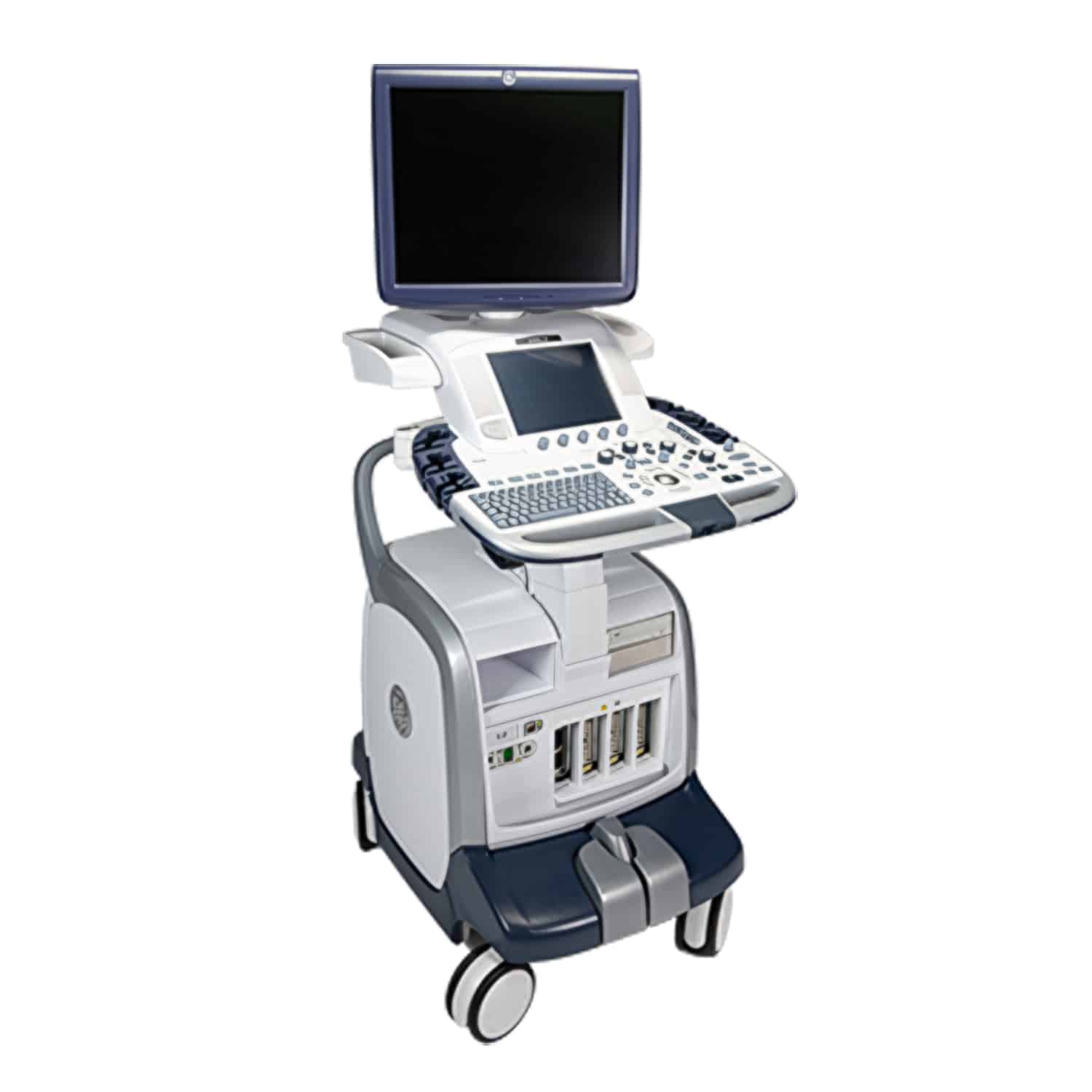

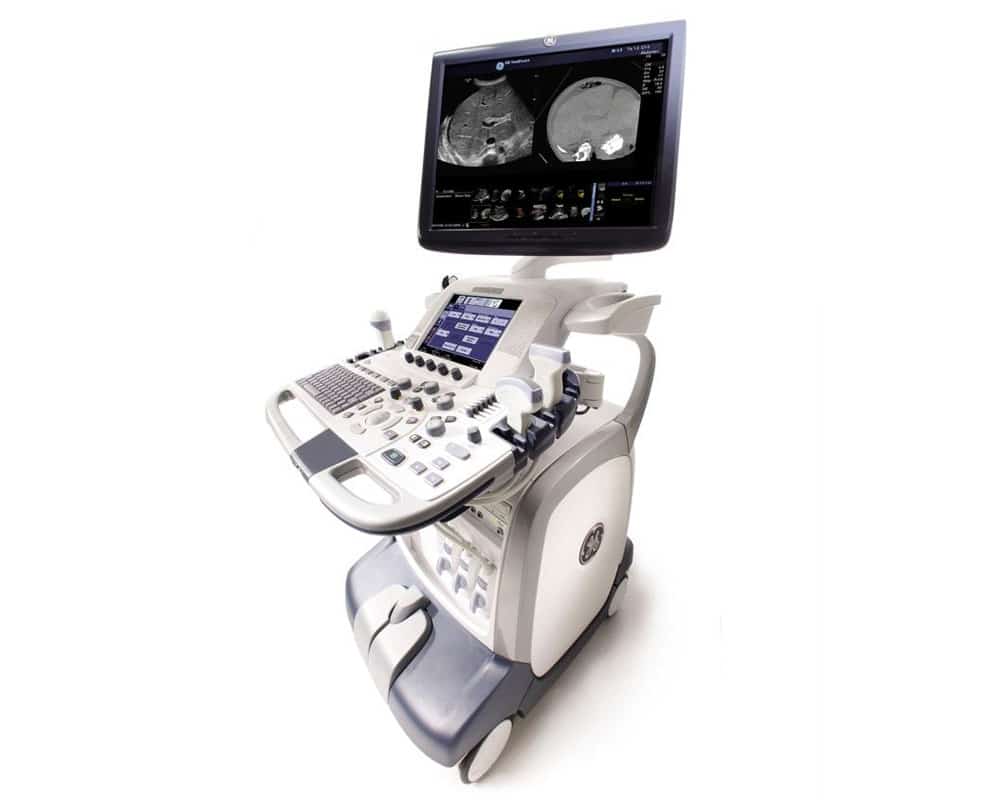

GE says the LOGIQ E9 is 20% smaller and 100 pounds lighter than GE’s previous premium ultrasound systems. GE’s page describes a touchscreen, a large 19-inch monitor and swivel wheels, and its FDA filing gives a 10-inch LCD touch screen, a mobile console about 58 cm wide and real-time 3D and 4D acquisition with special 4D probes.
Imaging tools include XDclear transducers, Shear Wave Elastography and B-Flow, with Volume Navigation for combining other-modality imaging with ultrasound. GE’s 2015 FDA filing added Auto EF and AFI, two software features migrated from its Vivid E9. Scan Assistant automates measurements and imaging setup, and Compare Assistant shows a prior study in a split screen during the current exam.
GE’s December 2017 filing with the US FDA presents the LOGIQ E10 as a new platform, with the LOGIQ E9 as its primary predicate.
- Manufacturer
- GE HealthCare
- Series
- LOGIQ
- Used for
- General imaging
- Supplied by
- Ultravision, Dubai
Key features
- XDclear
- GE’s transducer technology, combining Acoustic Amplifier, Single Crystal and Cool Stack technologies for sensitivity, bandwidth and heat relief, listed by GE on the C1-6 and C2-9 transducers.
- Shear Wave Elastography
- Assesses tissue stiffness quantitatively, shown as a colour-coded elastogram with measurements in kPa or m/s.
- B-Flow
- Shows blood flow with a non-Doppler technology.
- Agile Acoustic Architecture
- Uses dynamic body models to acquire images across patient types with fewer manual adjustments.
- Volume Navigation
- Combines other-modality imaging with real-time or previously acquired ultrasound, including fusion, GPS and Needle Tracking.
- Scan Assistant
- Automates measurements, Colour Doppler steering, imaging setup and comments.
- Compare Assistant
- Shows a prior study in a split screen during the current exam.
- Auto EF and AFI
- Two software features added to the LOGIQ E9 in GE’s 2015 FDA filing, migrated from the Vivid E9.
Specifications
From GE’s 510(k) summary K152309 for the LOGIQ E9 and LOGIQ E9 XDclear 2.0, filed with the US FDA. Options and configurations vary by region; we confirm the exact specification in every quotation.
| User interface touch screen | 10-inch LCD |
|---|---|
| 3D and 4D | Real-time 3D and 4D acquisition with special 4D probes |
| Console size (W x D x H) | Approx. 58 x 87 x 130 cm |
Service, probes and training
Our Dubai team supports the GE LOGIQ E9 after delivery: installation coordination, application training for your sonographers, preventive maintenance, repairs and probe repair, under a service contract or as one-off visits.
GE LOGIQ E9: questions
What is the GE LOGIQ E9?
The GE LOGIQ E9 is a general imaging ultrasound system on a mobile console, which GE calls powerful and versatile. GE’s FDA filing lists fetal and obstetric, abdominal, paediatric, small organ, cardiac, peripheral vascular, musculoskeletal and urology applications.
What does XDclear mean on the LOGIQ E9?
XDclear is GE’s transducer technology, combining Acoustic Amplifier, Single Crystal and Cool Stack technologies for sensitivity, bandwidth and heat relief. GE lists it on the C1-6 and C2-9 transducers of the LOGIQ E9.
What are Volume Navigation and B-Flow on the GE LOGIQ E9?
Volume Navigation combines other-modality imaging with real-time or previously acquired ultrasound, including fusion, GPS and Needle Tracking. B-Flow shows blood flow with a non-Doppler technology. GE lists both for the LOGIQ E9.
How does the LOGIQ E9 relate to the LOGIQ E10?
GE’s December 2017 filing with the US FDA presents the LOGIQ E10 as a new platform, with the LOGIQ E9 as its primary predicate, and GE’s LOGIQ E9 page is still online. Ultravision can advise on the E10 and can still service installed LOGIQ E9 systems.
