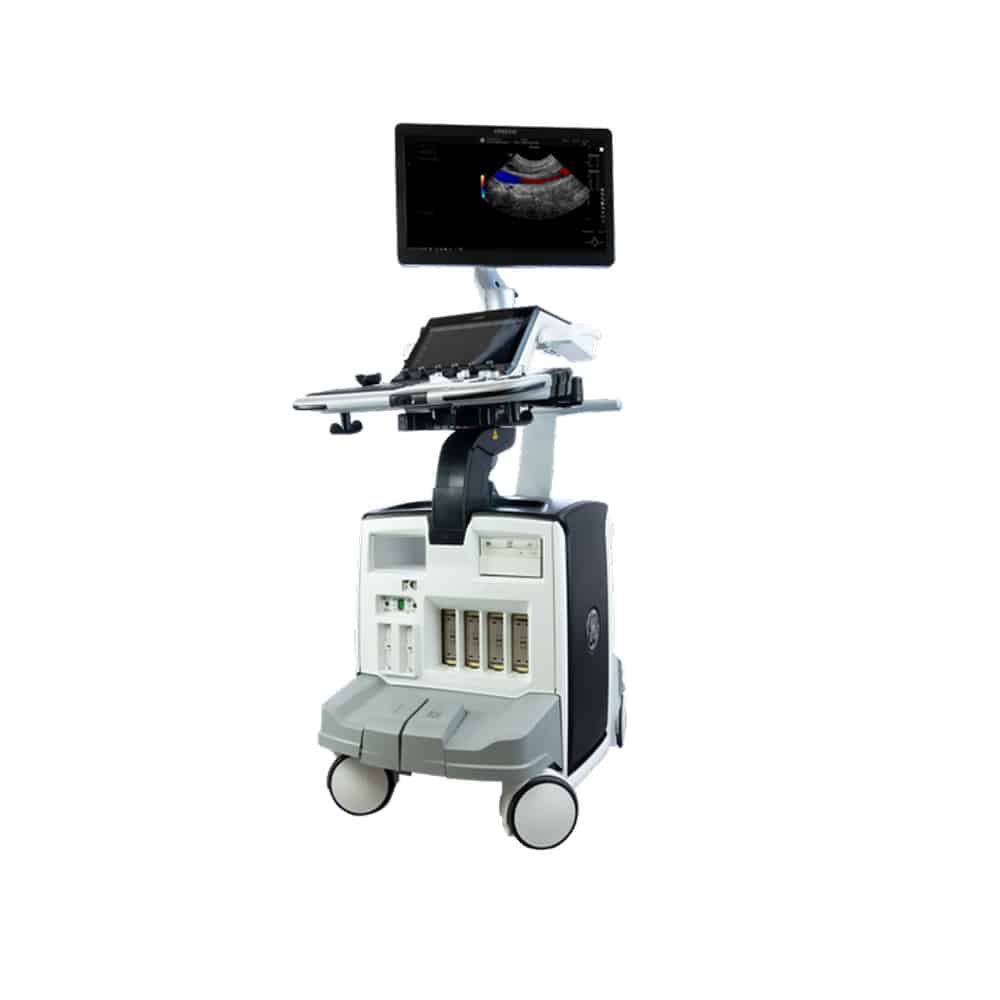

GE LOGIQ E10 Ultrasound System
The GE LOGIQ E10 is a general purpose ultrasound system on a mobile console, part of GE’s LOGIQ E10 Series with the LOGIQ E10s. GE positions the series for imaging from neonates to geriatric patients.
- Abdominal
- Obstetrics
- Cardiac
- Vascular
- Musculoskeletal
- Small organs
Overview
GE’s LOGIQ E10 Series page describes imaging from head to toe, from obese to thin patients and from neonate to geriatric. GE’s FDA filing lists fetal and obstetric, abdominal, paediatric, small organ, cardiac, peripheral vascular, musculoskeletal and urology applications, with transrectal, transvaginal, transoesophageal and intraoperative exams.
The system runs on GE’s cSound Architecture, which GE pairs with XDclear probes and the cSound Imageformer. In the same filing GE lists STIC, Elastography Analysis and Omniview with VCI as features migrated from its Voluson E series. GE sells the LOGIQ E10 in a series that also includes the LOGIQ E10s.
- Manufacturer
- GE HealthCare
- Series
- LOGIQ
- Used for
- General imaging
- Supplied by
- Ultravision, Dubai
Key features
- cSound Architecture
- GE’s imaging architecture, which GE says delivers clarity and resolution from near field to far field, with all pixels in focus.
- XDclear probes and cSound Imageformer
- GE pairs cSound Architecture with XDclear probes and the cSound Imageformer.
- 2D shear wave elastography with quality map
- Gives quantitative insight into tissue elasticity.
- Contrast-Enhanced Ultrasound (CEUS)
- GE says it visualises tissue structure and lesion vascularity.
- Ultrasound-Guided Fat Fraction (UGFF)
- Quantifies liver steatosis as a percentage.
- Scan Assistant and Raw Data
- GE says they support image acquisition and streamline workflows.
- Auto Renal Measure Assistant
- Detects the kidney and measures its length, height and width automatically.
- Fusion Imaging
- Named by GE on its LOGIQ E10 Series musculoskeletal page alongside 2D shear wave elastography.
Specifications
From GE’s 510(k) summary K173555 for the LOGIQ E10, filed with the US FDA. Options and configurations vary by region; we confirm the exact specification in every quotation.
| User interface touch screen | 12-inch LCD |
|---|---|
| Console size (W x D x H) | Approx. 585 mm (keyboard width) x 900 mm x 1300 mm |
Service, probes and training
Our Dubai team supports the GE LOGIQ E10 after delivery: installation coordination, application training for your sonographers, preventive maintenance, repairs and probe repair, under a service contract or as one-off visits.
GE LOGIQ E10: questions
What is the GE LOGIQ E10 used for?
GE HealthCare calls the LOGIQ E10 a general purpose diagnostic ultrasound system. Its FDA filing lists fetal and obstetric, abdominal, paediatric, small organ, neonatal and adult cephalic, cardiac, peripheral vascular, musculoskeletal and urology applications, plus transrectal, transvaginal and intraoperative exams.
What is cSound Architecture on the LOGIQ E10?
cSound Architecture is GE’s imaging architecture on the LOGIQ E10. GE says it delivers clarity and resolution from near field to far field, with all pixels in focus, and pairs it with XDclear probes and the cSound Imageformer.
Does the GE LOGIQ E10 offer shear wave elastography?
Yes. GE lists 2D shear wave elastography with a quality map for the LOGIQ E10 and says it gives quantitative insight into tissue elasticity. GE’s LOGIQ E10 Series musculoskeletal page names it together with Fusion Imaging.
What organ-specific tools does the GE LOGIQ E10 list?
For the LOGIQ E10, GE lists Auto Renal Measure Assistant, which detects the kidney and measures its length, height and width automatically, and Ultrasound-Guided Fat Fraction, which quantifies liver steatosis as a percentage. It also lists Contrast-Enhanced Ultrasound.
Can Ultravision quote the GE LOGIQ E10?
Ultravision Medical Equipment Trading in Dubai supplies GE ultrasound systems in the UAE, including the LOGIQ E10 on request. Tell us the configuration and options you need when you request a quote online or call +971 4 294 9965.
