Esaote MyLab X8 Ultrasound System

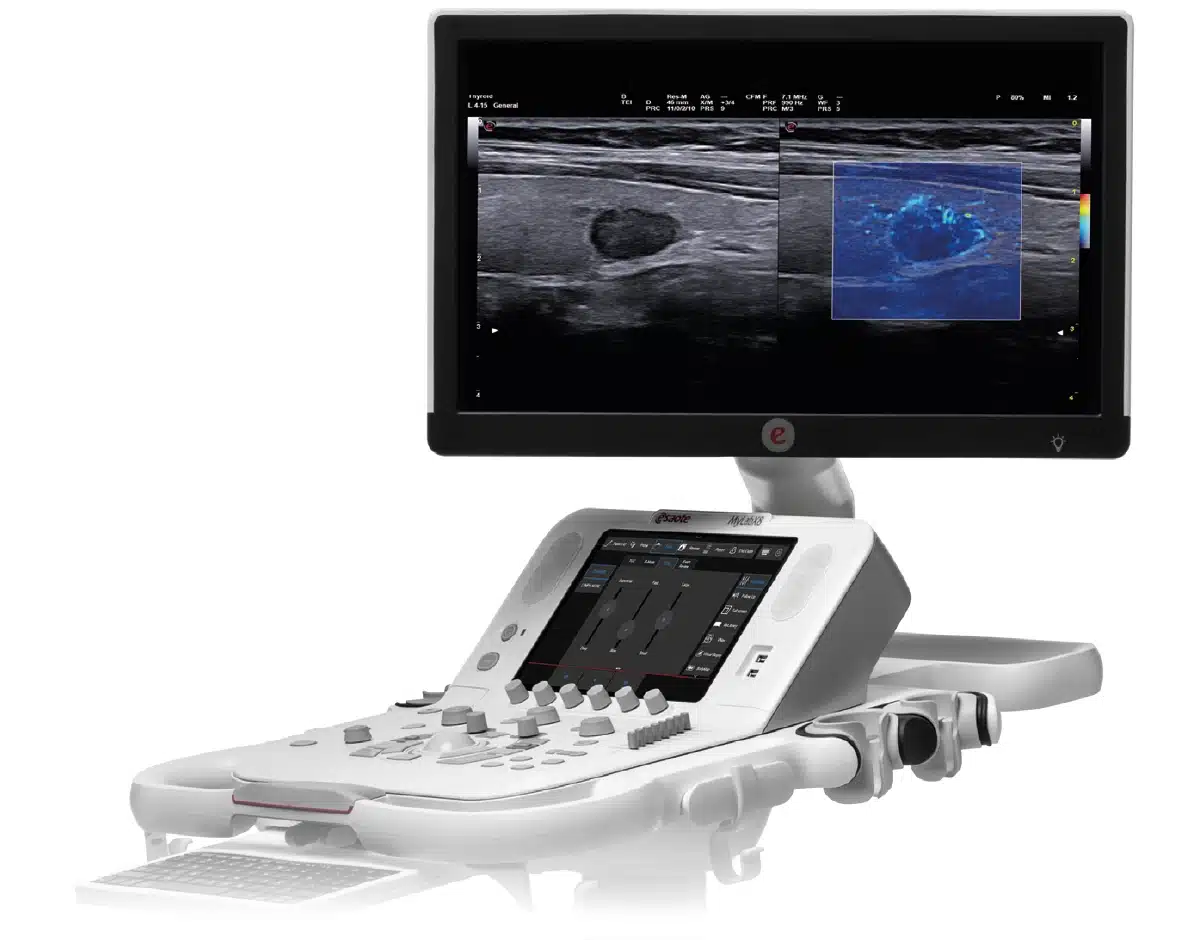

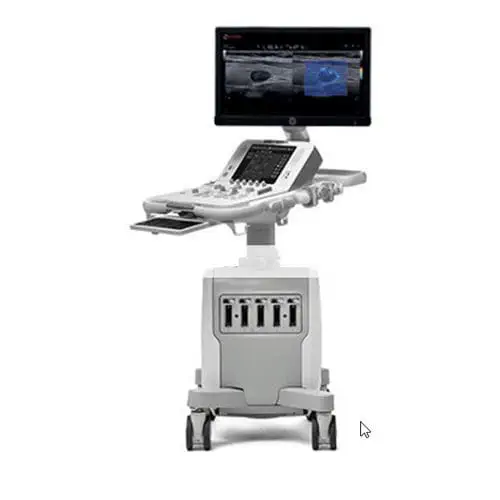

The MyLab X8 is a console ultrasound system that Esaote lists as the MyLab X8 Platform. It has a 21-inch monitor, a tablet-like touchscreen and up to five transducer connectors, and covers general imaging, cardiovascular and women’s health.
- General imaging
- Cardiovascular
- Women’s health
Overview
Esaote’s product page titles the MyLab X8 Platform a high performance console ultrasound system. The hardware is a 21-inch LCD monitor with full-screen mode, a widescreen multi-function tablet-like touchscreen and up to five transducer connectors, and the system runs on Windows 10. An on-board battery for an autonomous cart base is optional.
The brochure shows zero-click automation functions with AutoEF and XStrain 2D as its cardiac examples, XLight for 3D/4D exploration, microV for tissue perfusion and QIMT for carotid intima media thickness. Esaote’s probe listings include MSK applications, and it offers X8eXP and Cardiovascular Edition variants whose features are not described here.
- Manufacturer
- Esaote
- Series
- MyLab
- Used for
- Women’s health, Cardiology, General imaging
- Supplied by
- Ultravision, Dubai
Key features
- Zero-click automation
- Esaote’s name for its zero-click functions, with AutoEF and XStrain 2D shown in the brochure as examples.
- AutoEF
- Zero-click measurement of the ejection fraction in cardiac imaging.
- XStrain 2D
- Zero-click strain evaluation in cardiac imaging.
- XLight
- Used for 3D/4D exploration; the brochure shows it on an image of the uterus.
- asyMode and asyColor
- One-touch image optimisation through real-time algorithms, which Esaote marks as patent pending.
- QIMT
- Real-time measurement of the carotid intima media thickness.
- microV
- Visualises tissue perfusion; the brochure shows it on a kidney image.
- iQProbes
- Esaote’s transducer family, which the brochure describes with appleprobe ergonomics.
Specifications
From Esaote’s MyLab X8 brochure. Options and configurations vary by region; we confirm the exact specification in every quotation.
| Monitor | 21-inch LCD with full-screen mode |
|---|---|
| Touchscreen | Widescreen multi-function tablet-like touchscreen |
| Transducer connectors | Up to 5 |
| Battery | Optional on-board battery for an autonomous cart base |
| Boot | Fast boot from standby (no figure given) |
| Operating system | Windows 10 |
Service, probes and training
Our Dubai team supports the Esaote MyLab X8 after delivery: installation coordination, application training for your sonographers, preventive maintenance, repairs and probe repair, under a service contract or as one-off visits.
Esaote MyLab X8: questions
What is the Esaote MyLab X8?
The Esaote MyLab X8, listed by Esaote as the MyLab X8 Platform, is a console ultrasound system for general imaging, cardiovascular and women’s health. It has a 21-inch monitor, a tablet-like touchscreen and up to five transducer connectors.
Is the MyLab X8 portable or battery powered?
Esaote describes the MyLab X8 as a console system. An on-board battery that enables an autonomous cart base is optional, and the sources we opened give no weight, dimensions or battery runtime. Esaote says only that the system boots fast from standby.
What are zero-click automation, AutoEF and XStrain 2D on the MyLab X8?
Zero-click automation is Esaote’s name for a group of functions on the MyLab X8. The brochure shows AutoEF, a zero-click ejection fraction measurement, and XStrain 2D, a zero-click strain evaluation, both in cardiac imaging.
What does XLight do on the MyLab X8?
Esaote’s MyLab X8 brochure names XLight for 3D/4D exploration and shows it on an image of the uterus. The same brochure lists asyMode and asyColor for one-touch image optimisation through real-time algorithms.
Who supplies the Esaote MyLab X8 in Dubai?
Ultravision Medical Equipment Trading, based in Dubai, supplies Esaote ultrasound systems including the MyLab X8, matched to the transducers and clinical applications you specify. We also support it with training, maintenance and probe repair. Call +971 4 294 9965.
