Esaote · MyLab
Esaote MyLab Sigma Ultrasound System
Esaote’s MyLab Sigma is a battery-operated ultrasound unit that the manufacturer calls portable and multidisciplinary. It runs on Windows 10 and is aimed at general imaging, women’s health and cardiovascular work.
- General imaging
- Point of care
- Obstetrics and gynaecology
- Cardiac and vascular
Overview

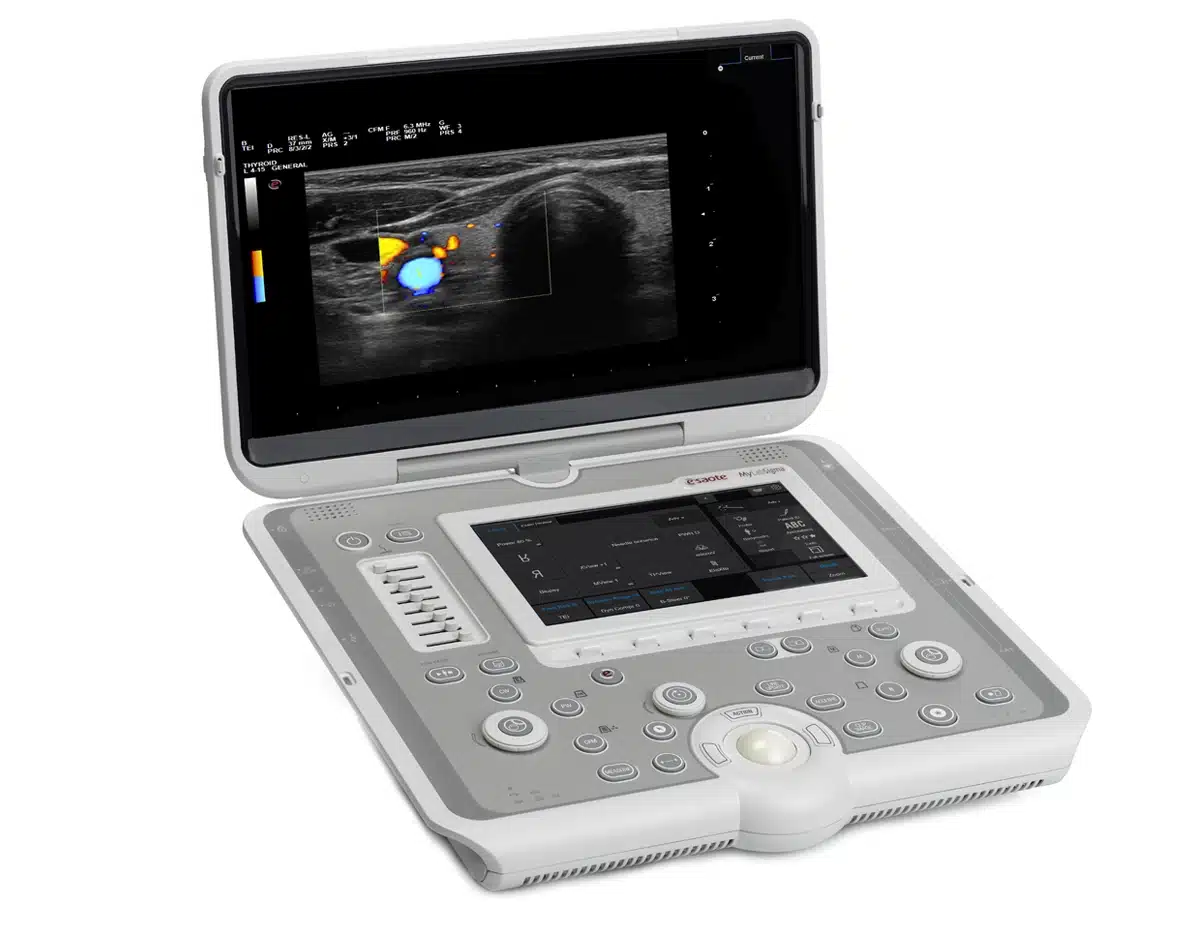

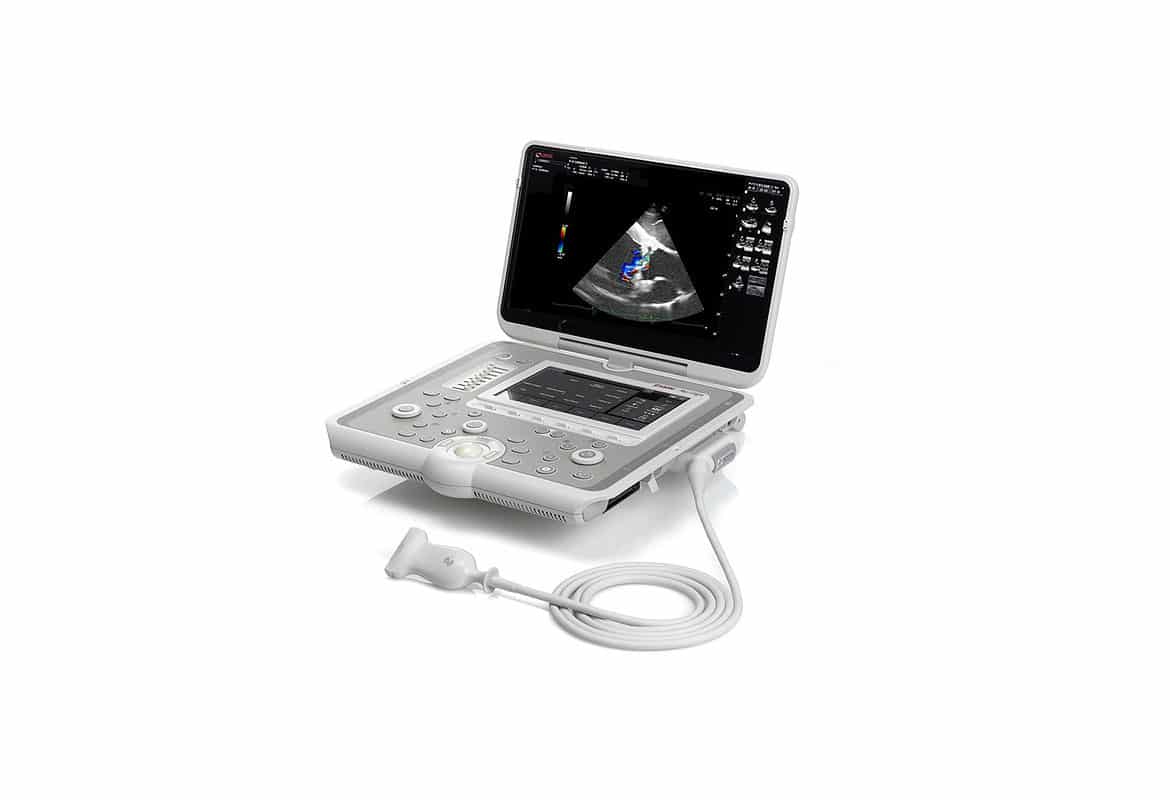

Esaote calls the MyLab Sigma a smart, portable, multidisciplinary ultrasound unit. It pairs a 15.6-inch swivelling monitor that rotates and tilts with a separate built-in touchscreen, and has two probe connectors on board, or four when the trolley multi-connector is added. Esaote lists general imaging, women’s health and cardiovascular as its areas of use.
For clinical work, the brochure names 3D-4D imaging with convex and endovaginal probes, AutoNT, Zero-click AutoEF and Stress Echo analysis. Esaote also lists a separate MyLab Sigma Elite variant; its features are not described on this page. The specifications below come from Esaote’s brochure, which gives no weight, dimensions or battery runtime.
- Manufacturer
- Esaote
- Series
- MyLab
- Used for
- Women’s health, Cardiology, General imaging, Point of care
- Supplied by
- Ultravision, Dubai
Key features
- 3D-4D imaging
- Available with convex and endovaginal probes for obstetric and gynaecological applications.
- AutoNT
- Listed in the women’s health section with 3D-4D imaging and full report and graphics.
- Zero-click AutoEF
- Listed among the features of the cardiac and vascular configurations.
- Stress Echo analysis and QIMT
- Both are named in the cardiac and vascular configurations.
- Tissue Velocity Mapping
- Shown in the brochure on a mitral valve posterior leaflet analysis.
- VPan and Needle Visibility
- Named among the special features for general imaging, with Full screen and MyLibrary, but not described further.
- MyLab Tablet and streaming
- Listed under connectivity with DICOM, including query/retrieve, a multi-modality archive and wireless connectivity.
Specifications
From Esaote’s MyLab Sigma brochure. Options and configurations vary by region; we confirm the exact specification in every quotation.
| Monitor | 15.6-inch swivelling monitor (rotating and tilting) |
|---|---|
| Touchscreen | Built-in touchscreen in addition to the monitor |
| Probe connectors | Two on board; four with the trolley multi-connector |
| Power | Battery operated (runtime not stated) |
| Boot time | Less than 15 seconds from stand-by mode |
| Operating system | Windows 10 |
| Connectivity | DICOM (including query/retrieve), multi-modality archive, wireless, MyLab Tablet, streaming |
Service, probes and training
Our Dubai team supports the Esaote MyLab Sigma after delivery: installation coordination, application training for your sonographers, preventive maintenance, repairs and probe repair, under a service contract or as one-off visits.
Esaote MyLab Sigma: questions
What is the Esaote MyLab Sigma?
The Esaote MyLab Sigma is a battery-operated ultrasound unit that Esaote describes as smart, portable and multidisciplinary. It is offered for general imaging, women’s health and cardiovascular work, and has a 15.6-inch swivelling monitor with a separate built-in touchscreen.
How portable is the MyLab Sigma?
Esaote lists the MyLab Sigma as battery operated, with a boot time of less than 15 seconds from stand-by mode and an additional trolley multi-connector that takes the probe connectors from two to four. Weight, dimensions and battery runtime are not stated in Esaote’s brochure.
Does the MyLab Sigma support DICOM and wireless connectivity?
Esaote lists DICOM connectivity (including query/retrieve), a multi-modality archive, wireless connectivity, MyLab Tablet and streaming for the MyLab Sigma, which is based on Windows 10. We confirm which are included in the configuration you order.
Can the MyLab Sigma be used for women’s health imaging?
Esaote lists women’s health among the MyLab Sigma’s application areas, from obstetric to gynaecology. The brochure names 3D-4D imaging with convex and endovaginal probes, AutoNT, and full report and graphics for that work.
Where can I buy the Esaote MyLab Sigma in the UAE?
Ultravision Medical Equipment Trading supplies the Esaote MyLab Sigma from its Dubai office, with the probes and configuration you choose. After delivery our team supports it with application training, preventive maintenance, repairs and probe repair. Call +971 4 294 9965 or request a quote.
