Siemens ACUSON Redwood Ultrasound System

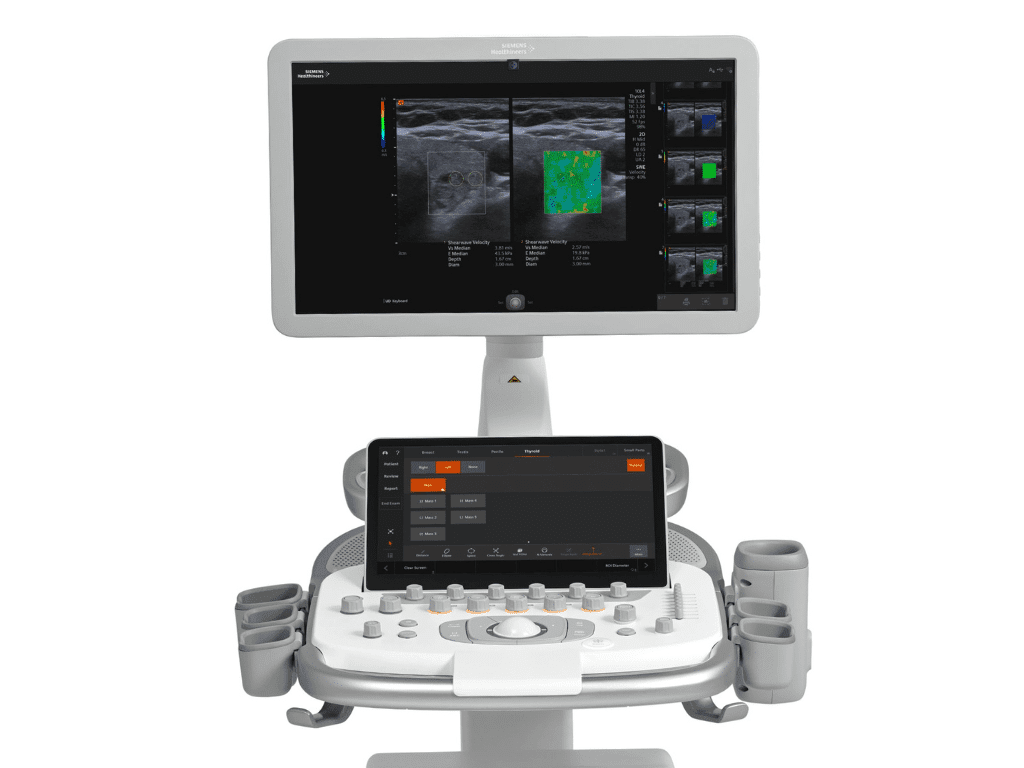

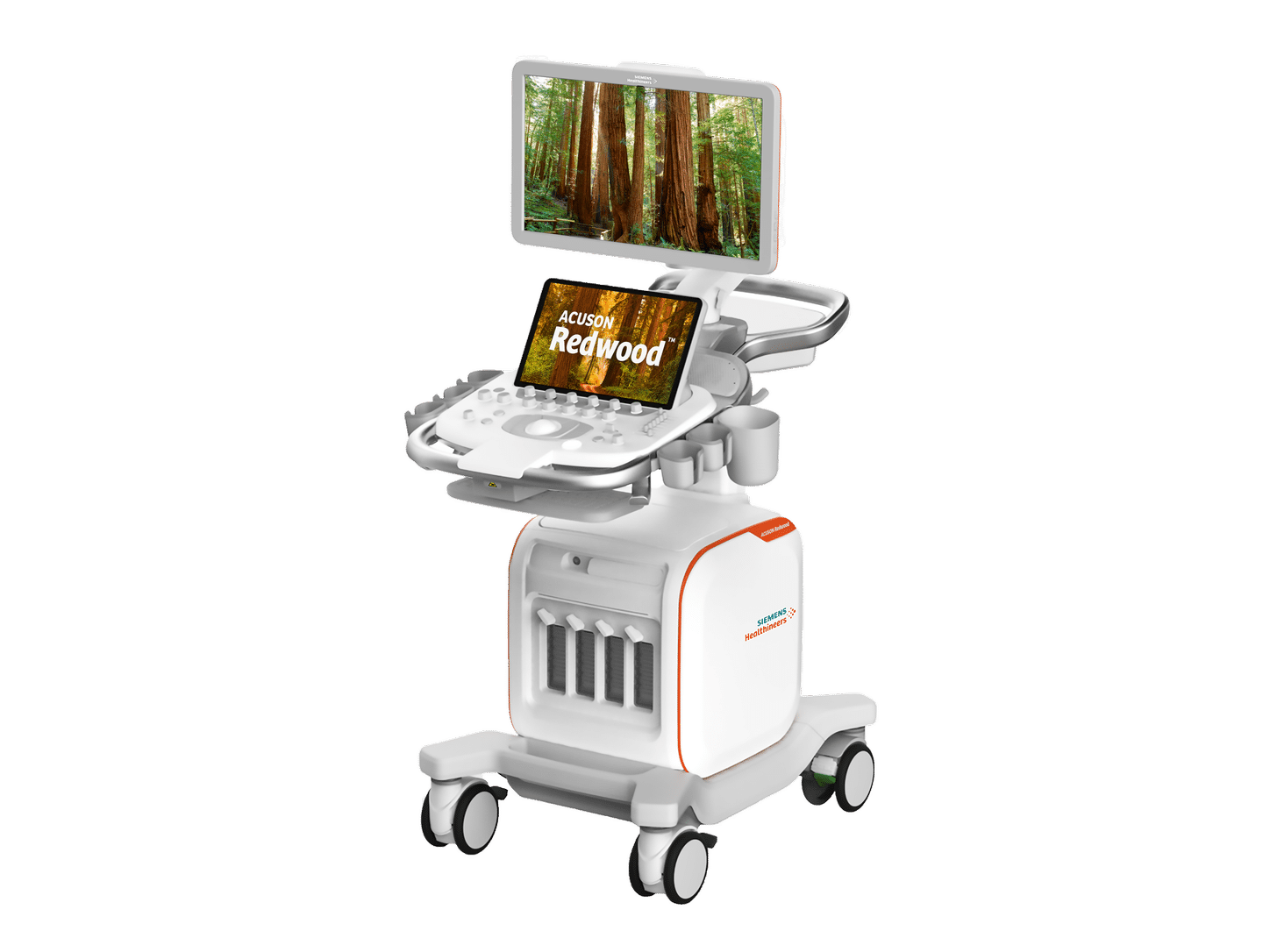

The Siemens ACUSON Redwood is a cart-based ultrasound system for abdominal, cardiovascular, obstetric, gynaecological and musculoskeletal imaging, with a 21.5-inch monitor, a 13.3-inch touch screen and four active transducer ports.
- Abdomen and liver
- Cardiac, including stress echo
- Vascular
- Obstetrics and gynaecology
- Musculoskeletal
- Small parts and prostate
Overview
Siemens describes the ACUSON Redwood as a system with AI-powered tools, shared service cardiology features and more than 16 transducers, and lists applications from abdomen and liver to cardiac, vascular, obstetric and gynaecological, musculoskeletal, small parts, prostate, paediatric and neonatal work. The cart is 53 cm wide and 86 cm deep, weighs 87 kg and has a height range of 110 to 169 cm.
Cardiac tools on Siemens’s page include Stress Echo with six user-definable factory default protocols, syngo Velocity Vector Imaging for myocardial motion, eSie Left Heart and 2D transoesophageal imaging with the V5M transducer. For the liver it lists UDFF, contrast-enhanced ultrasound and Virtual Touch Shear Wave. Where a department is replacing a Redwood, Ultravision can suggest a current equivalent, and it still services installed units.
On 12 October 2026 Siemens Healthineers announced that the ACUSON Redwood is among the general imaging ultrasound systems it will no longer sell, and said it will keep servicing systems already installed.
- Manufacturer
- Siemens Healthineers
- Series
- ACUSON
- Used for
- General imaging
- Supplied by
- Ultravision, Dubai
Key features
- eSie Measure
- One-touch quantification that Siemens says reduces keystrokes and increases reproducibility.
- eSie OB
- Automated obstetric biometric measurements that Siemens says reduce scan time and keystrokes.
- eSie Left Heart
- Identifies and contours the left ventricle and left atrium, which Siemens says improves measurement consistency.
- Stress Echo
- Six user-definable factory default protocols, with wall motion scoring and reporting.
- syngo Velocity Vector Imaging (VVI)
- Assesses myocardial motion and mechanics using speckle tracking.
- UDFF
- Ultrasound-derived fat fraction, an index Siemens describes as an aid in managing patients with hepatic steatosis.
- Virtual Touch Shear Wave
- Point shear wave liver stiffness measurements, with colour-coded shear wave maps for breast and thyroid on the 10L4 transducer.
- Auto TEQ
- Automatically optimises parameters such as gain, velocity scale and baseline in B-mode and pulsed-wave modes.
Specifications
From Siemens Healthineers, ACUSON Redwood product page (Australia). Options and configurations vary by region; we confirm the exact specification in every quotation.
| Monitor | 21.5-inch (54.6 cm) high-resolution LCD |
|---|---|
| Touch screen | 13.3-inch (33.7 cm) diagonal |
| Active transducer ports | 4 |
| Transducers | Over 16 |
| Width | 53 cm |
| Height | 110 to 169 cm |
| Depth | 86 cm |
| Weight | 87 kg |
Service, probes and training
Our Dubai team supports the Siemens ACUSON Redwood after delivery: installation coordination, application training for your sonographers, preventive maintenance, repairs and probe repair, under a service contract or as one-off visits.
Siemens ACUSON Redwood: questions
What is the Siemens ACUSON Redwood ultrasound system?
The ACUSON Redwood is a Siemens Healthineers ultrasound system that Siemens describes as having AI-powered tools, shared service cardiology features and more than 16 transducers. It has a 21.5-inch monitor, a 13.3-inch touch screen and four active transducer ports.
What does eSie Measure do on the Siemens ACUSON Redwood?
Siemens describes eSie Measure as one-touch quantification that reduces keystrokes and increases reproducibility. The ACUSON Redwood also lists eSie OB for automated obstetric biometric measurements and eSie Left Heart, which identifies and contours the left ventricle and left atrium.
Is the Siemens ACUSON Redwood suitable for cardiology?
Siemens lists cardiac applications for the ACUSON Redwood, including stress echo with six user-definable factory default protocols, 2D transoesophageal imaging with the V5M transducer, syngo Velocity Vector Imaging and eSie Left Heart. Siemens also lists a separate ACUSON Redwood, CV Edition.
Can the Siemens ACUSON Redwood be used for women’s health?
Siemens lists OB-GYN applications for the ACUSON Redwood, including fetal imaging. Its page names the eSie OB tool for automated obstetric biometry and shows the 7VC2 volume transducer for 3D and 4D fetal imaging.
Does Ultravision still support the Siemens ACUSON Redwood?
Siemens Healthineers has said it will no longer sell the ACUSON Redwood. Ultravision Medical Equipment Trading in Dubai still services Redwood systems that are already installed and can recommend a current equivalent for a replacement. Call +971 4 294 9965 for details.
