GE HealthCare · Vivid

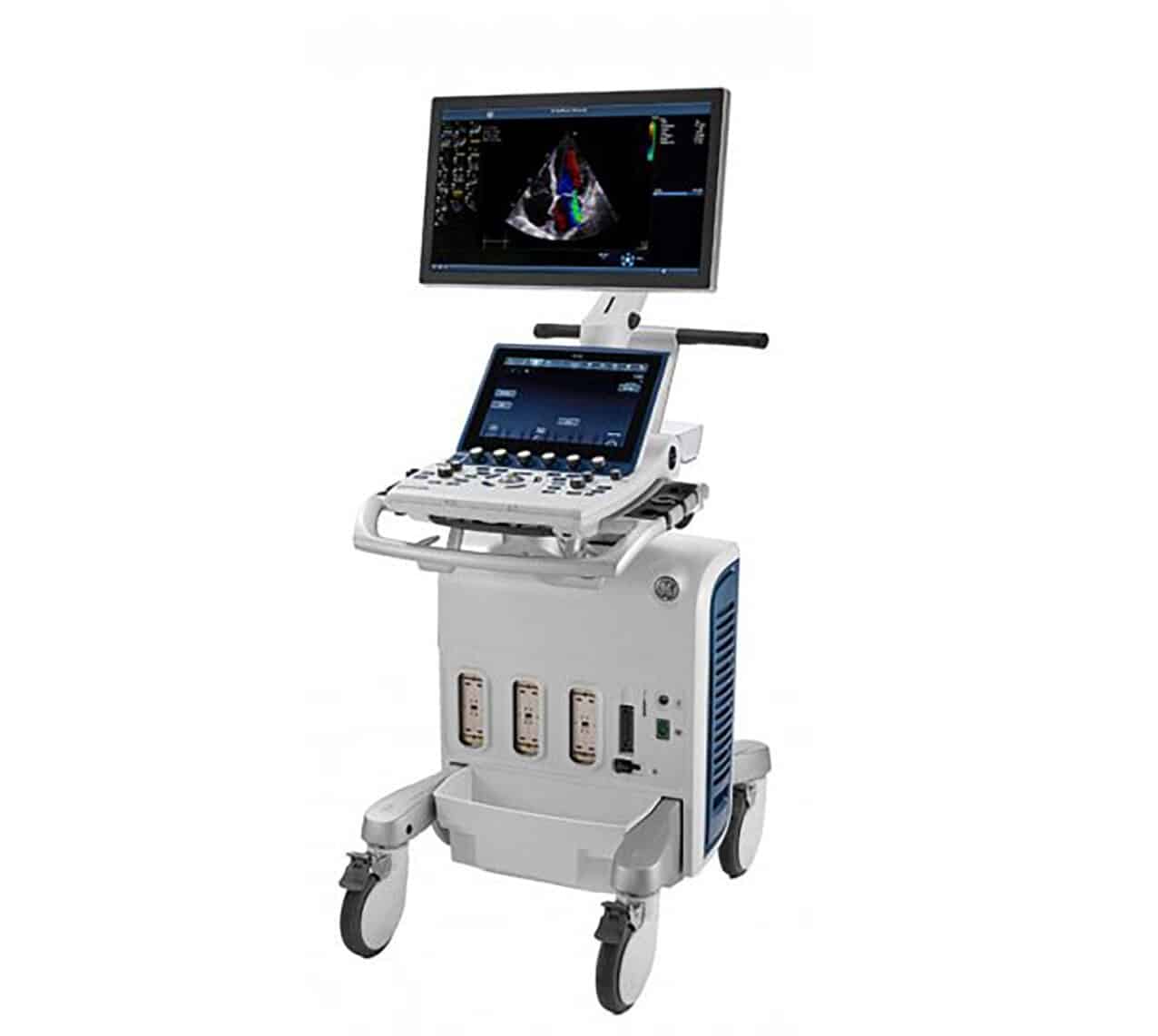

GE Vivid S60 Ultrasound System
The GE Vivid S60 is a mobile ultrasound system intended mainly for echocardiography, with vascular and general imaging capability and real-time 3D and 4D acquisition using dedicated 4D probes.
- Adult and paediatric cardiac
- Peripheral vascular
- Abdominal and renal
- Small organ
- Urology
Overview
GE’s 2014 FDA summary does not separate the Vivid S60 from the S70, so the console, display and modes below apply to both. The console is about 56 cm wide, 77 cm deep and 120 cm high, with a variable-height, rotatable control panel, a 19-inch wide screen LCD and a 12.1-inch multi-touch panel.
GE lists B-Flow, AFI with a Bull’s Eye display, 2D Stress and AFI Stress among its processing and display features, and the cardiac applications cover adult and paediatric patients. The Vivid S60N is a later, separate system, so we can advise on it and still service installed Vivid S60 units.
GE’s current models in this series are the Vivid S60N and S70N. We can advise on them and still service Vivid S60 systems already installed.
- Manufacturer
- GE HealthCare
- Series
- Vivid
- Used for
- Cardiology
- Supplied by
- Ultravision, Dubai
Key features
- AFI with Bull’s Eye display
- GE’s filing lists Automated Functional Imaging with a Bull’s Eye display among the processing features.
- B-Flow
- Listed with Pulsatile-Flow and Extended FOV in GE’s summary of the system’s processing and display features.
- Real time 3D and 4D acquisition
- Available when the system is used with special 4D probes, according to GE’s filing.
- 2D Stress and AFI Stress
- Stress echo tools that GE’s filing lists alongside Smart Depth, a feature GE says is the same as on the Vivid S5 and S6.
- DICOM
- The system was tested to the DICOM standard (NEMA PS 3).
Specifications
From GE HealthCare’s 510(k) summary K142323, shared by the Vivid S60 and Vivid S70. Options and configurations vary by region; we confirm the exact specification in every quotation.
| Console size | About 56 cm wide, 77 cm deep, 120 cm high (mobile console) |
|---|---|
| Main monitor | 19-inch wide screen LCD |
| Touch panel | 12.1-inch, 1280x800, multi-touch |
| Control panel | Variable height, rotatable |
| Imaging modes | B, M, Colour M, Colour/Power Doppler, Pulsed and CW Doppler, combined modes, Harmonic, Coded Pulse, Realtime 3D and Multi-plane |
Service, probes and training
Our Dubai team supports the GE Vivid S60 after delivery: installation coordination, application training for your sonographers, preventive maintenance, repairs and probe repair, under a service contract or as one-off visits.
GE Vivid S60: questions
What is the GE Vivid S60 used for?
GE HealthCare’s FDA summary, which covers the Vivid S60 and S70 together, calls the system primarily intended for echocardiography imaging and analysis. It also lists peripheral vascular, abdominal, urology, small organ and musculoskeletal applications.
Can the Vivid S60 be used for paediatric cardiac imaging?
Yes. GE’s FDA summary lists adult and paediatric cardiac among the applications, along with paediatric and neonatal cephalic imaging. The transducer table for the Vivid S60 and S70 includes the 6S-D and 12S-D phased array probes.
Which stress echo tools does the GE Vivid S60 list?
GE’s FDA summary lists 2D Stress and AFI Stress for the Vivid S60 and S70, with Smart Depth, which GE says is the same as on the Vivid S5 and S6. It does not describe stress protocols, so ask us for the exact software options.
Is the Vivid S60 the same as the Vivid S60N?
No. The Vivid S60 shares GE’s 2014 FDA filing K142323 with the S70. The Vivid S60N is a later system covered by GE’s July 2022 filing K220619. Check which one you have before ordering probes or service.
How do I enquire about the GE Vivid S60 in Dubai?
Call Ultravision Medical Equipment Trading in Dubai on +971 4 294 9965 or send an enquiry through the website. We supply GE ultrasound systems in the UAE, service installed systems and can confirm whether the Vivid S60 or the later S60N fits your needs.
