Canon Medical Systems · Aplio i-series

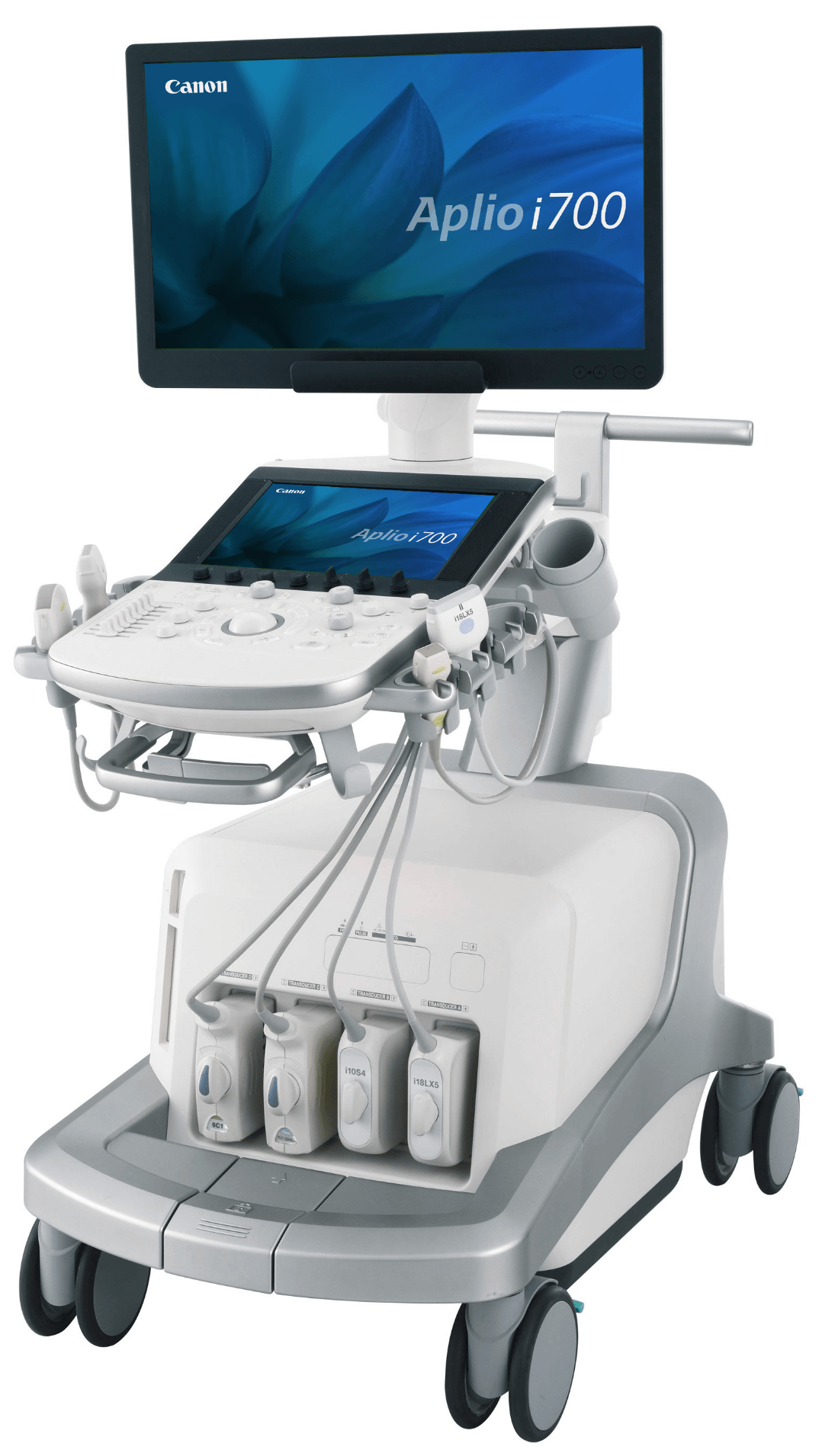

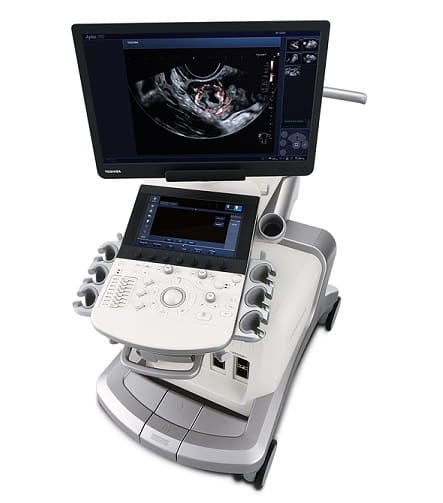

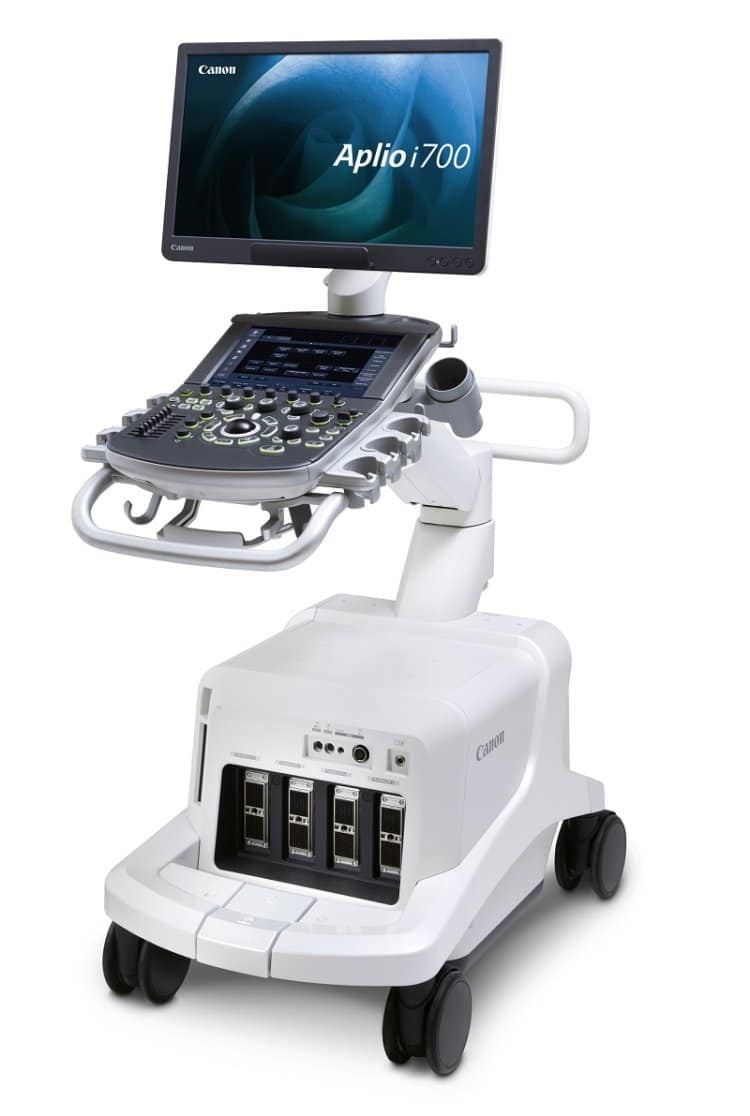

Canon Aplio i700 Ultrasound System
The Canon Aplio i700 is a mobile ultrasound system from the Aplio i-series for general imaging, with obstetric, gynaecological, cardiac and vascular applications. It sits above the Aplio a-series in Canon’s range and works with probes up to 33 MHz.
- Abdominal
- Obstetrics and gynaecology
- Cardiac
- Vascular
- Paediatric and neonatal
- Liver assessment
Overview
Canon’s brochure presents the Aplio i700 / Prism Edition for general imaging, with sections for abdominal, paediatric, obstetric, gynaecological, cardiac and vascular work. The i700 (model TUS-AI700) is named alongside the Aplio i900 and i800 in Canon’s FDA clearance, which covers flat linear, convex and sector probes from roughly 2 to 33 MHz.
Imaging is built on iBeam+, a beamformer that Canon says processes images in real time up to four times faster than earlier Aplio i-series versions, and on iDMS matrix array technology, which gives a thin slice beam with continuous focus. Altivity-branded AI functions detect standard scan planes and automate measurements. Canon’s current Prism Edition of the i-series adds 3rd Harmonic Imaging, SMI Angio and Auto Tune SWE.
- Manufacturer
- Canon Medical Systems
- Series
- Aplio i-series
- Used for
- Women’s health, Cardiology, General imaging
- Supplied by
- Ultravision, Dubai
Key features
- iBeam+
- Beamformer that Canon says gives up to four times faster real-time image processing than earlier Aplio i-series versions.
- iDMS (intelligent Dynamic Micro-Slice)
- Matrix array technology that sharpens ultrasonic beams in the elevation direction to give a thin slice beam with continuous focus.
- Full Focus
- Gives uniform images from near to far field without focus adjustments.
- Superb Micro-vascular Imaging (SMI)
- Depicts fine flow with strongly reduced clutter, and Canon notes it works with free breathing.
- Altivity
- Canon’s brand name for the AI-assisted functions that detect standard scan planes automatically and automate measurements.
- Shear Wave Elastography and Attenuation Imaging
- Liver tools for fibrosis assessment and liver fat quantification.
- Smart 3D
- Adds volume imaging to convex and linear transducers, supporting all modes including SMI and SWE.
- Auto EF with GLS
- AI-assisted automated measurement for the left ventricle and atrium.
Specifications
From Canon Aplio i700 / Prism Edition brochure and FDA 510(k) K233195, which also covers the Aplio i800 and i900. Options and configurations vary by region; we confirm the exact specification in every quotation.
| Probe frequency range | Approximately 2–33 MHz |
|---|---|
| Probe array types | Flat linear, convex, sector |
| Control panel height adjustment | Motorised, 36 cm range |
| Battery operation | Up to 30 minutes with optional battery |
| Model number | TUS-AI700 |
Service, probes and training
Our Dubai team supports the Canon Aplio i700 after delivery: installation coordination, application training for your sonographers, preventive maintenance, repairs and probe repair, under a service contract or as one-off visits.
Canon Aplio i700: questions
What is the Canon Aplio i700 used for?
The Canon Aplio i700 is a mobile ultrasound system whose FDA clearance covers fetal, abdominal, paediatric, small-organ, transvaginal and transrectal, cardiac, vascular and musculoskeletal applications. Canon’s brochure also details liver assessment with shear wave elastography and Attenuation Imaging.
Can the Canon Aplio i700 scan paediatric and neonatal patients?
Canon’s FDA clearance for the Aplio i700 lists paediatric, neonatal cephalic and paediatric cardiac applications. The brochure says neonates can be examined with a single probe by selecting the preset, and names Advanced Dynamic Flow among its flow tools.
Which AI features does the Canon Aplio i700 have?
Canon labels its AI-assisted functions Altivity: automatic detection of standard scan planes and automated measurements. Auto EF with GLS adds AI-assisted measurement of the left ventricle and atrium. FleXstyle is a user-interface feature that lets users configure the system, not an AI tool.
How portable is the Canon Aplio i700?
The Aplio i700 is a mobile system on a cart. Canon describes it as small and light, with a fully collapsible screen and panel for transport and a motorised control panel with a 36 cm height range. Canon lists up to 30 minutes of autonomous scanning with an optional battery.
Does Ultravision supply the Canon Aplio i700 in the UAE?
Ultravision Medical Equipment Trading supplies Canon ultrasound systems, including the Aplio i700, from its Dubai office. Call +971 4 294 9965 for a quotation, and ask about the optional battery, probes and software release, as well as service after delivery.
Articles about the Canon Aplio i700
Ask about the Canon Aplio i700
Tell us the clinical application, the transducers you need and where the system will be installed. We will reply with configuration options and a quotation.
